Deployment of WEB APIs and Virtual Machines in Azure¶

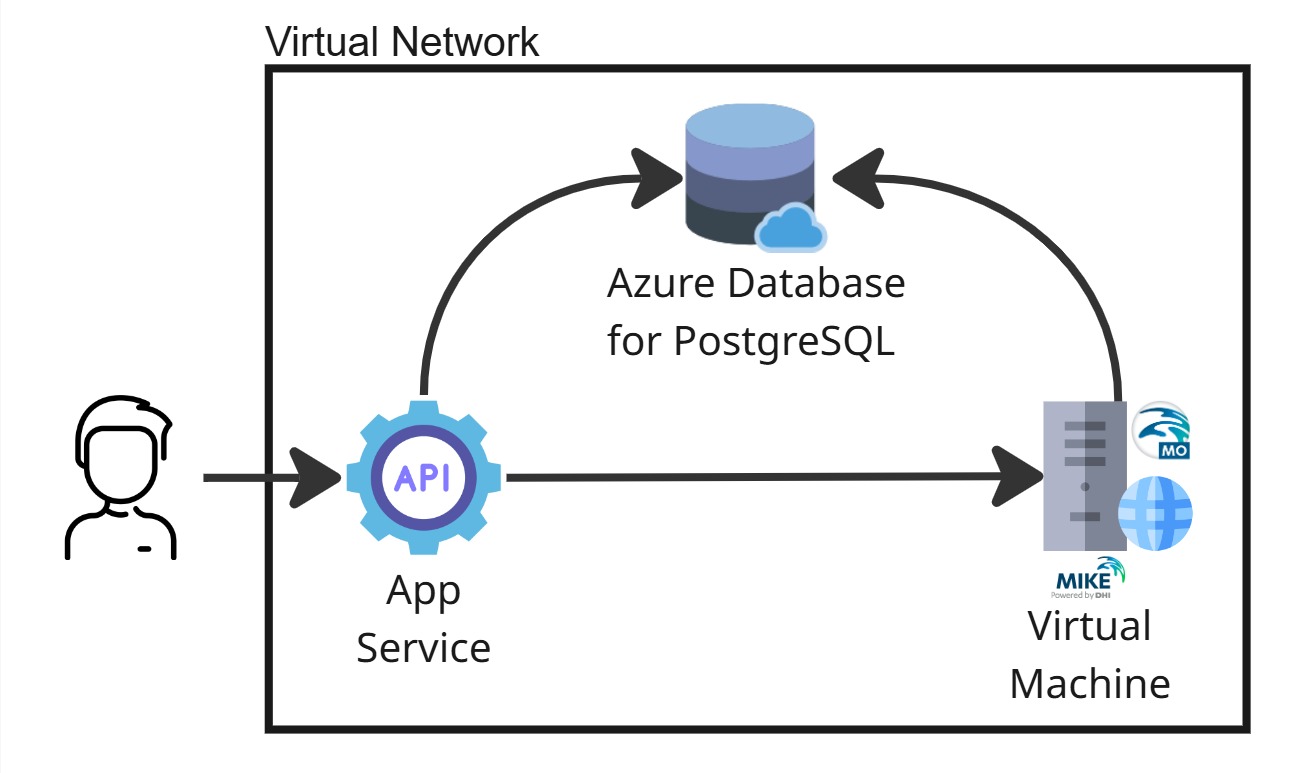

In this chapter, we will see how to configure a virtual network on Azure with a WebApp service hosting the Web APIs and one virtual machine for running models with MIKE OPERATIONS. The picture below shows the architecture. Unlike the deployment options in the chatper Azure Database PostgreSQL, this architecture does not allow access to the database from outside the network.

You will need an Azure subscription with a Contributor role.

1. Create a Virtual Network¶

In Azure, create a new Virtual network.

Select the subscription that will carry the cost and define a Resource group that will hold all required resources.

Name your virtual network and define the region where is will be hosted.

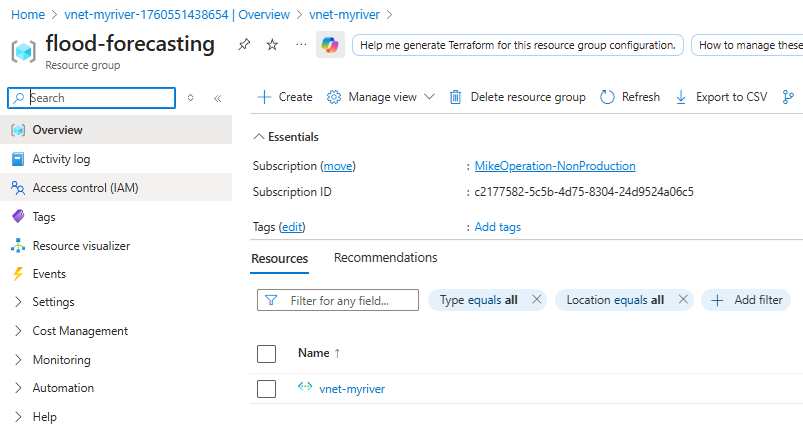

Follow the different steps by clicking Next and finish with Create. A Virtual network is now visible in your Resouce group.

2. Create a Network security group¶

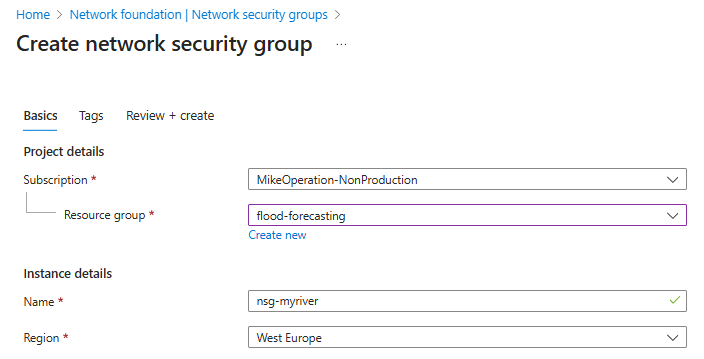

In Azure, create a new Network security group.

Select the same resouce group, the same region and give it a name.

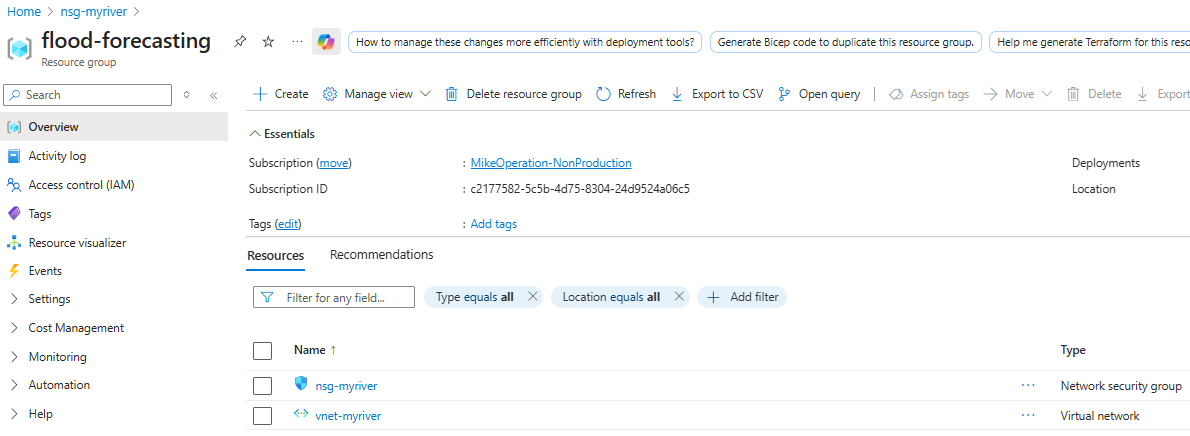

Click Review + Create, then Create and a new Network security group is created in your resource group.

3. Add a subnet for the PostgreSQL databse¶

We will create a sub network to handle the PostgreSQL Server.

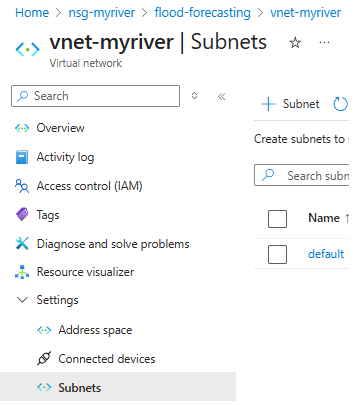

Click on your your virtual network, navigate to the Subnets page and click on + Subnet.

Give it a name.

Set the Sise to /28 (16 addresses).

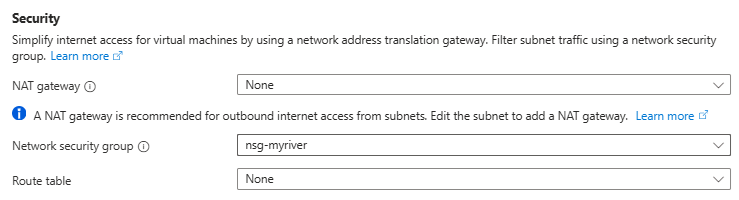

Select the Network security group.

Set the Delegate subnet to a service to Microsoft.DBforPostgreSQL/flexibleServers and click Add.

The subnet now shows in the list.

4. Add a subnet for the Virtual Machine and the WebApp Service¶

Create a new sub network for the virtual machine that will be used as run machine, on which MIKE OPERATIONS and the modelling software will be installed.

Set the Sise to /28 (16 addresses).

Add Security group, like we did in Step 3. Keep everything else as default and create. The subnet now shows in the list.

5. Create Application Security Group¶

Create an Application security group.

Select the resource group, give it a name and click Review + createand then Create.

6. Create and configure the virtual machine¶

This machine will be the run machine on which the models will run and MIKE OPERATIONS will be installed.

Create the virtual machine¶

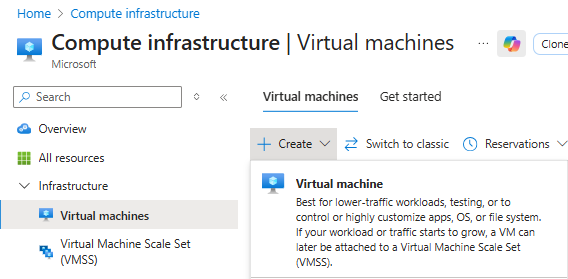

In Azure, go to Virtual Machine and click create.

Basic tab

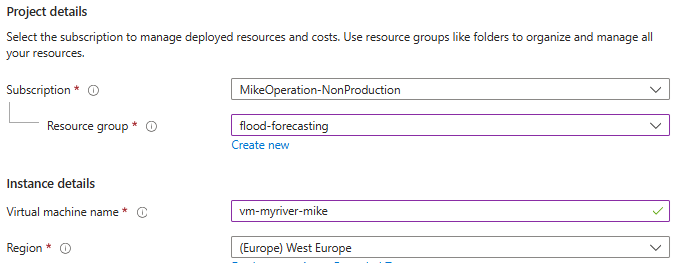

Select the Resource group, the region and give the machine a name (max 15 characters). Keep this machine name for the Job Configuration.

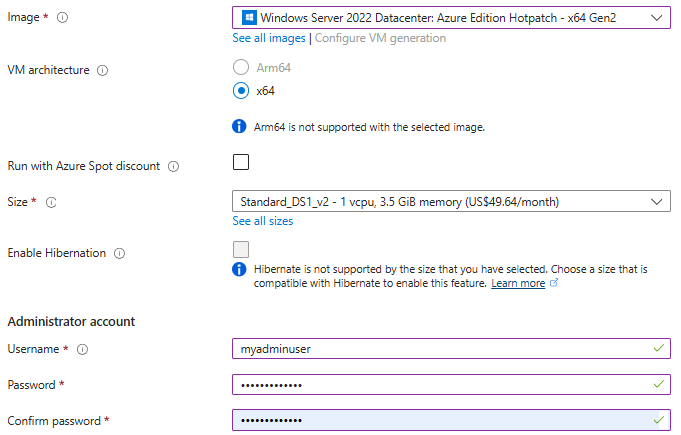

Select a Supported Image (see release notes) and define the user name and password.

Set the Public inbound ports to None.

Networking tab

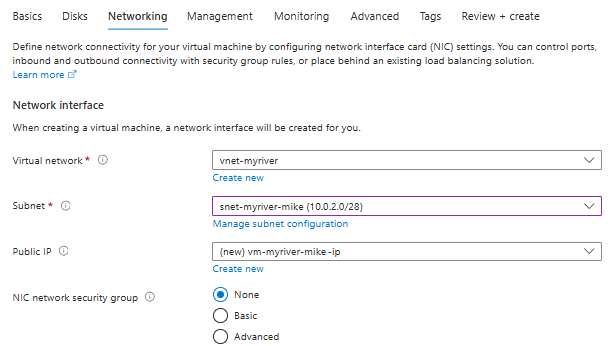

In the Networking tab, select the Subnet that was created for the machine in step 4. Keep NIC Network Security Group to None.

Click click Review + createand then Create.

You should have the following resources in your resource group.

Add Remote Desktop Inbound port rules¶

Remote Desktop¶

Once the machine is created, go to the resource and open Network settings.

Click on + Create port rule and select Inbound port rule.

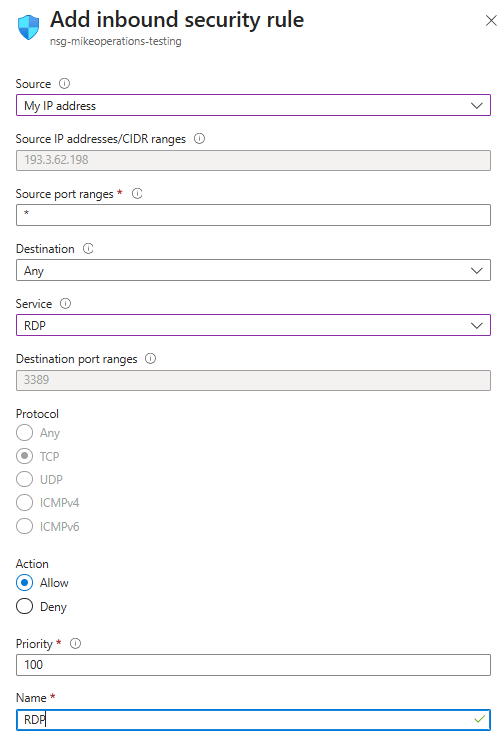

Set up a RDP inbound rule with your IP.

Job Service¶

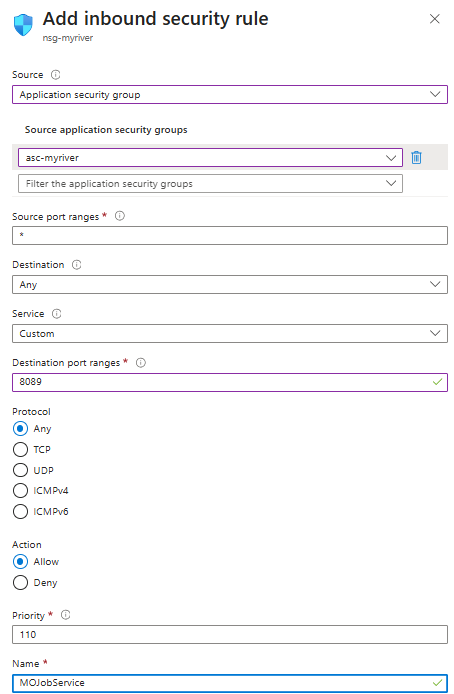

Add an additional inbound rule for the Web API (located in the Application security group) to access the MIKE OPERATIONS Job Services (using port 8089).

Set up an Application security group rule, using the Application security group created in step 5 and targeting port 8089.

Install MIKE OPERATIONS¶

Log into the virtual machine, install MIKE OPERATIONS following the Installation guide and configure the DHI License Manager using your Internet license credentials.

Note

Even though we use an Azure PostgreSQL service, we should install PostgreSQL on the Virtual Machine because the PgTools are required.

Configure Job¶

For the Run machine to be able run job triggered from the Web APIs, the host name must be set and the ports opened, following the guidelines

7. Create a database server¶

To create and configure an Azure Database for PostgreSQL, following the steps in this chapter, making sure to follow Case 2.

Write down for step 8:

database server name (e.g. "psql-mybeach.postgres.database.azure.com")
database name (e.g. "mike_operations")
Port (e.g., "5432")
database password associated with posgres user (e.g., "mypassword")

8. Create an Azure App Service (WebAPIs)¶

The WebAPIs will be hosted in an Azure App service. Select Web App in the Create menu. No database is required.

Basic tab¶

In the Basic tab, select the resource group, select the correct region and give a name to the instance.

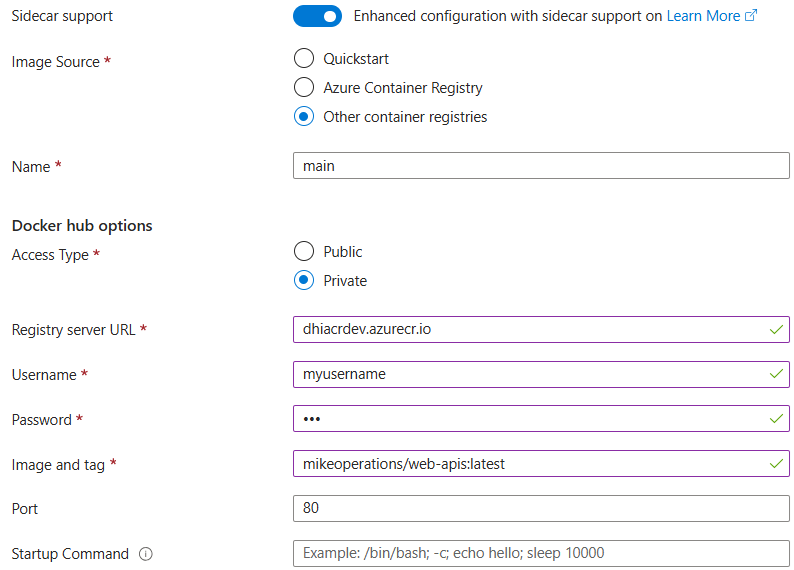

Container tab¶

The App Service will be created based on a Linux Container. Skip over the Database tab and define the container as Other container registries. Select Private. Make sure to select Sidecar support.

Then provide the following information

Registry server URL: dhiacrdev.azurecr.io
Username: (provided by DHI)
Password: (provided by DHI)
Image and tag: mikeoperations/web-apis:latest
Port: 80

Networking tab¶

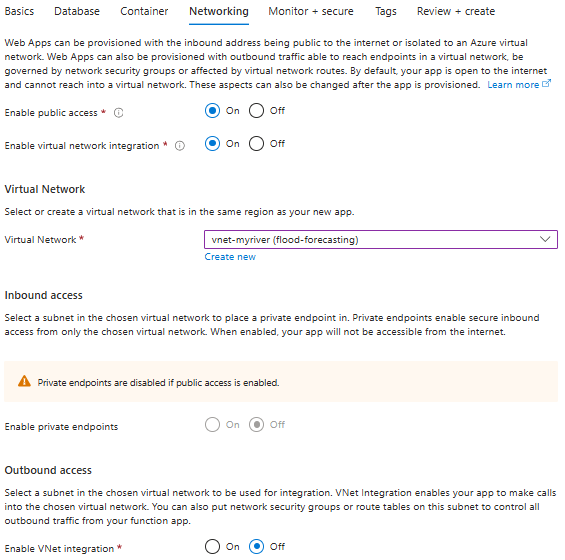

In Networking tab, set Enable public access to 'On' for the WebAPIs to be accessible to anyone. If the APIs will only be called by a known set of devices, the property should be set to 'Off' and private end points should be configured.

We need the App Service to communicate with the PostgreSQL database and Virtual Machine on the virtual network, so Enable virtual network integration should be set to 'On'. The Virtual Network should be selected and the Enable VNet integration set to 'off'.

Then create the WebApp

Add environment variables¶

Once the WebApp is created, environment variables should be added.

KEY_VAULT_NAME

Create an environment variable called KEY_VAULT_NAME to store the name of the key vault.

SECRET_NAME

Create an environment variable called SECRET_NAME to store the value ConnectionSrings in the key vault. This will be used to retrieve the database connection string from the KeyVault.

Configure Identity¶

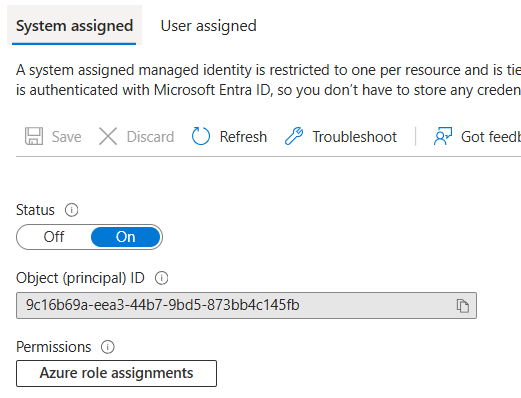

Go to the Identity tab

Switch on the System assigned

Networking¶

Go to the Networking tab

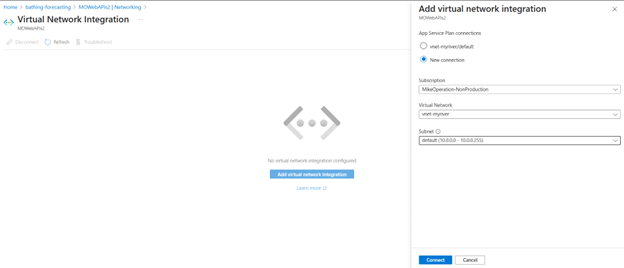

Select Outbound traffic Configuration

and add the virtual network you created and select the default Subnet.

9. Create Azure Key Vault¶

Create a new Key Vault

Basics tab¶

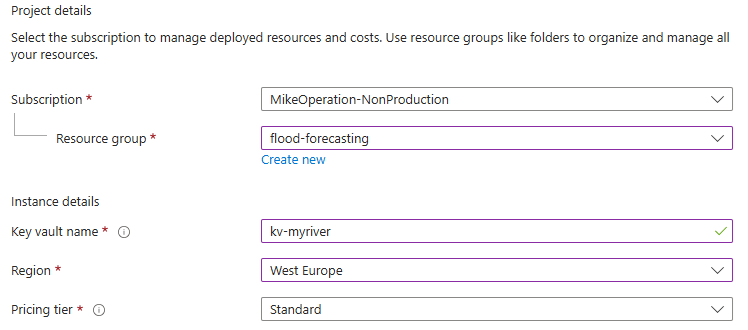

Select the resource group, the region and give it a name.

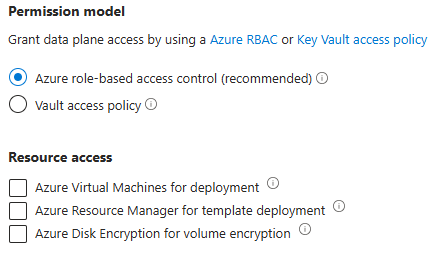

Access configuration tab¶

Networking tab¶

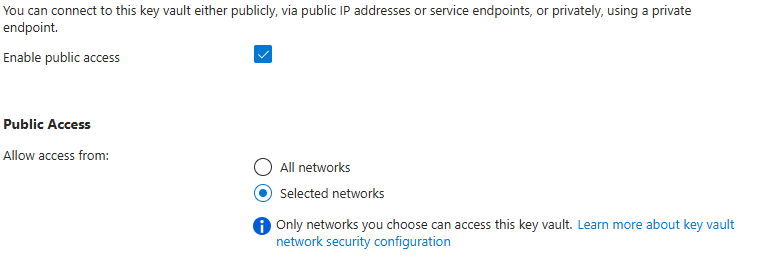

Pick the option Selected networks

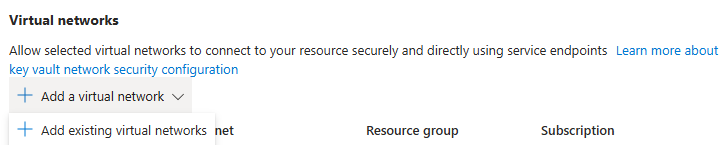

Click on Add a Virtual Network and Add an existing virtual network.

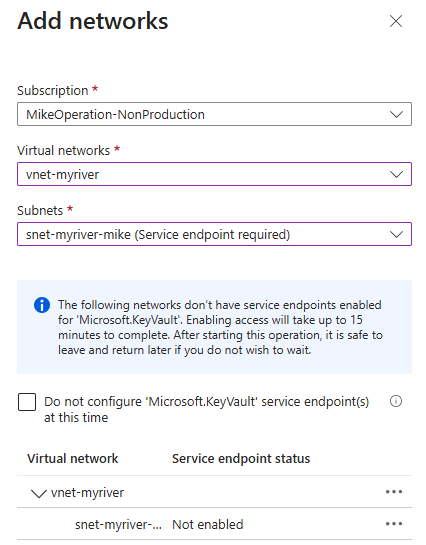

In the Add networks pannel, select your virtual network and add the subnet that you picked when creating your WebApp.

Then click Review + create and Create.

Add Key Vault Administrator¶

Once the Key Vault is created, fo to Access Control (IAM) and yourself as a Key Vault Administrator.

Add Networking rule¶

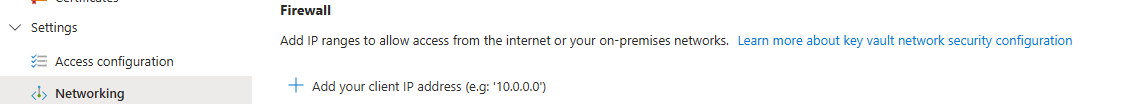

In the Networking tab, add a Firewall rule with your own IP adress.

Secrets tab¶

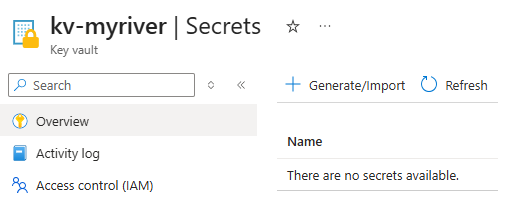

Go to Secrets

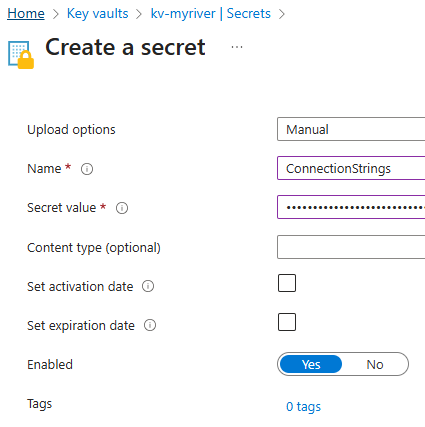

Create secret

Click Generate/Import to create a new Secret.

Name the secret ConnectionStrings and set the value to be a connection string made of the database server name, the database name, the Port and password, e.g.

host=psql-myriver.postgres.database.azure.com;port=5432;database=mike_operations;dbFlavour=PostgreSQL;workspace=workspace1;username=postgres;password=mypassword;Ssl Mode=Require

Access control

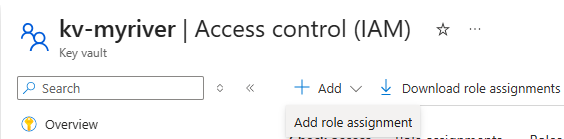

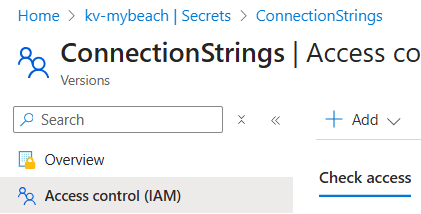

Click Access control (IAM) to give access to the secret to the WebAppcreate a new Secret.

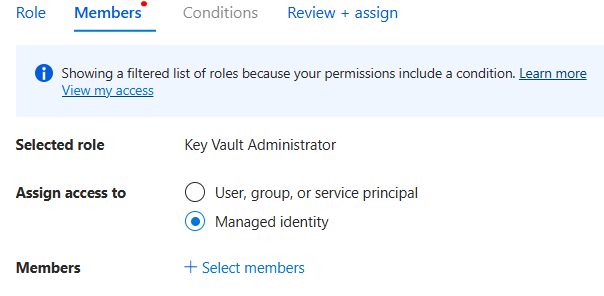

Click Add and select the role **Key Vault Administrator.

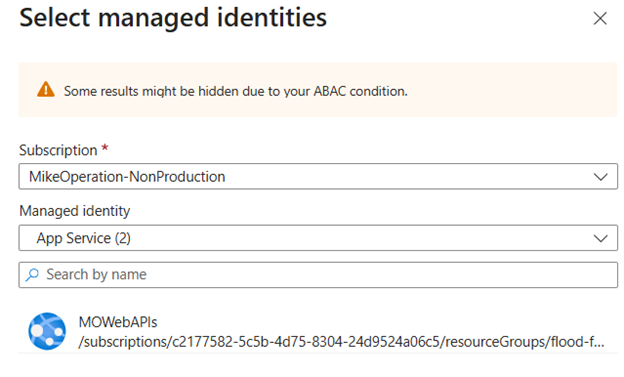

In Members, select Managed Identity

Select the App Service created in the previous step.

10. Test WebAPIs¶

Set up health check¶

Go to Health Check

Set the Path to /healthz

If there is a problem with your WebApp deployment, a warning will be shown at the top.

Is this is the case, look at deployment log under
